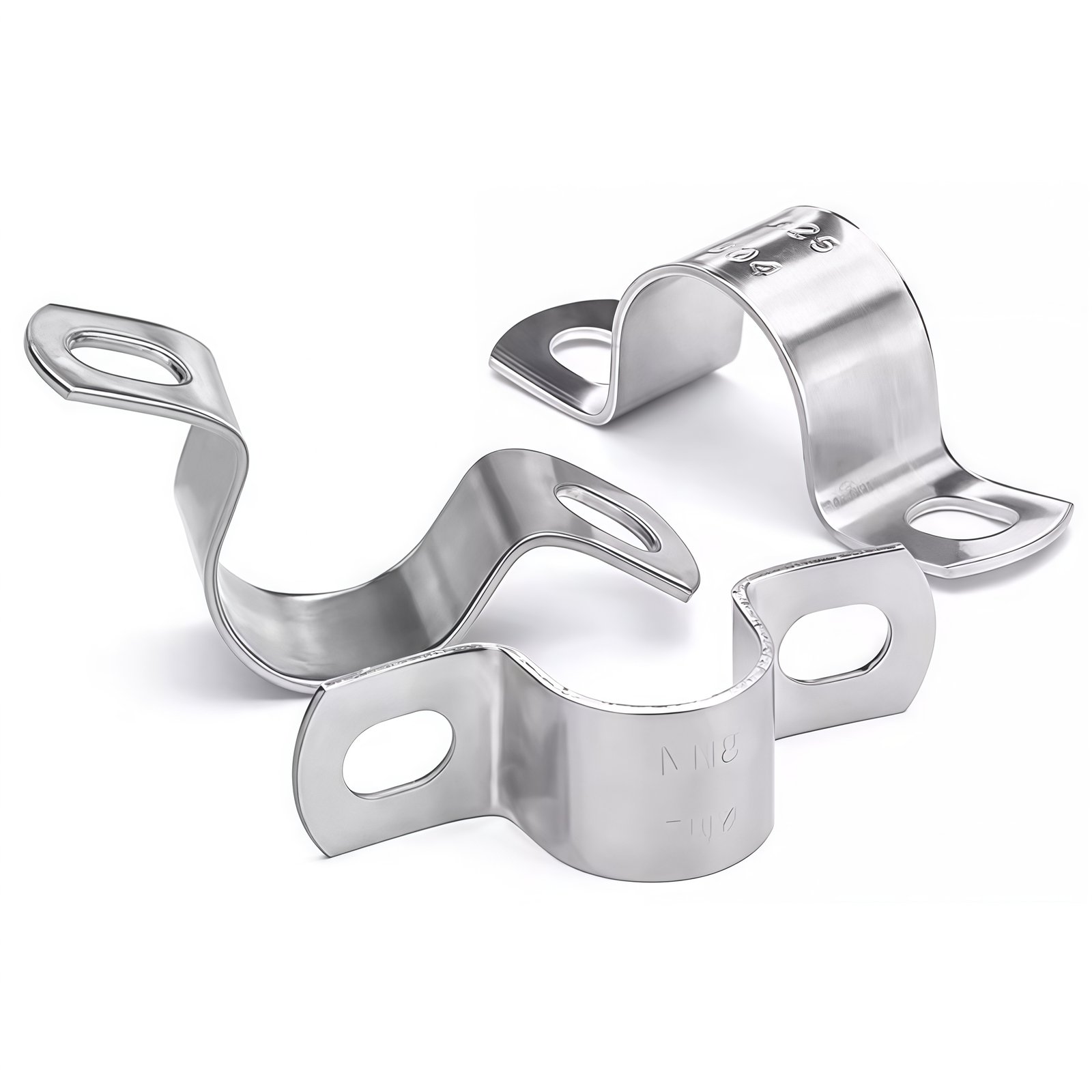

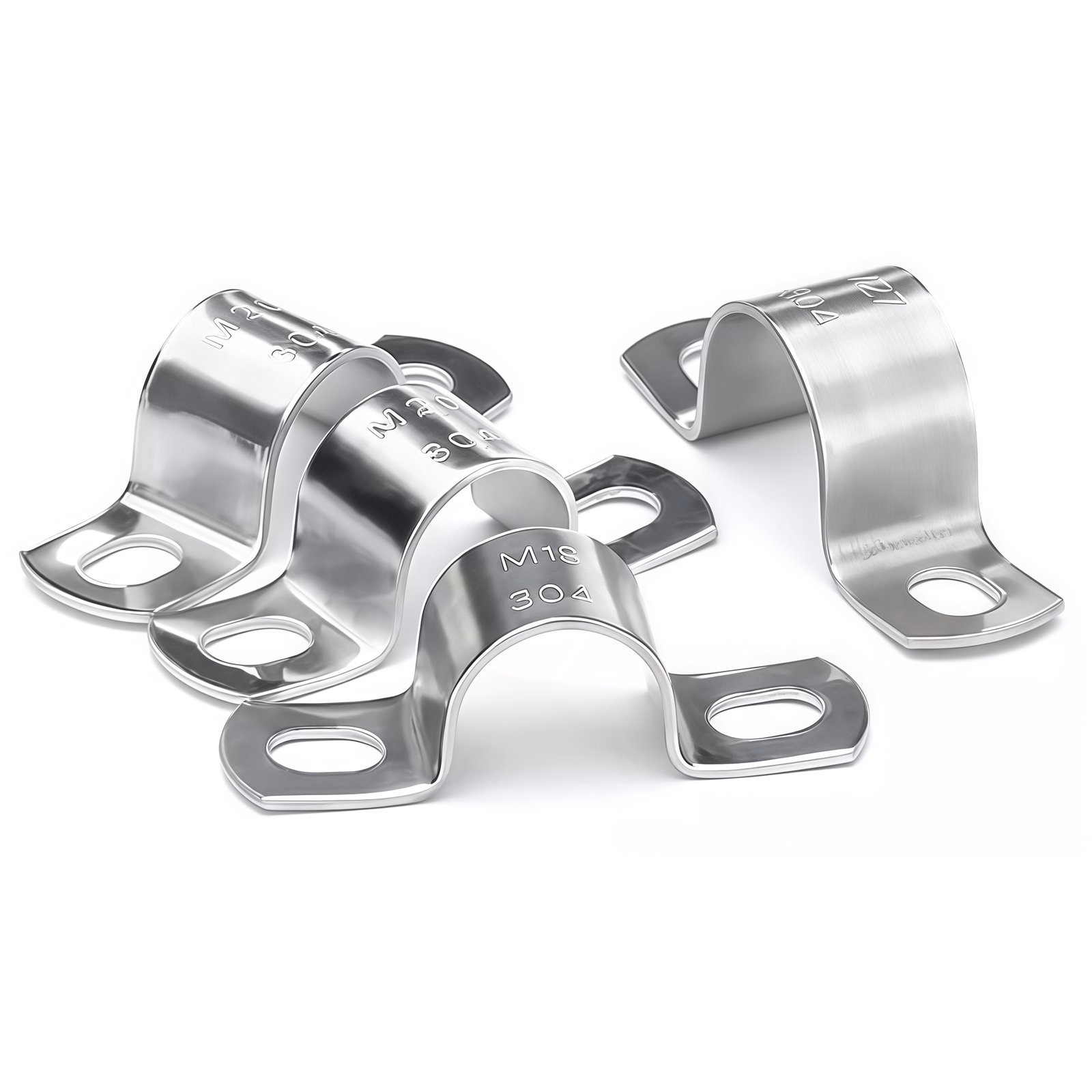

Industrial Stainless Steel Saddle Clamps & Pipe Support Straps

At YouJia Metal, we manufacture high-performance stainless steel saddle clamps (also known as pipe straps or U-clamps) designed for secure and durable pipe fastening. Leveraging our 10 years of expertise as an expert in customized processing of stainless steel non-standard parts, we offer both standard sizes and bespoke fabrication to meet the most demanding industrial requirements.

Our saddle clamps are produced in Dainan, the world-renowned stainless steel hub, ensuring premium material quality and highly competitive factory-direct pricing for our global B2B partners.

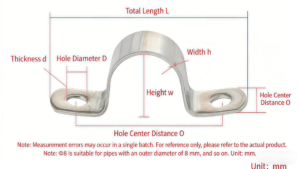

Technical dimension diagram of stainless steel saddle clamp pipe strap
SpecificationTotal Length LHole Center Distance OWidth WThickness dHeight hHole Diameter D
(mm / inch)(mm / inch)(mm / inch)(mm / inch)(mm / inch)(mm / inch)
Φ847 / 1.8529.5 / 1.1614 / 0.551.4 / 0.068 / 0.316.3 / 0.25
Φ1049 / 1.9330 / 1.1814 / 0.551.4 / 0.0610 / 0.396.3 / 0.25
Φ1252 / 2.0533.5 / 1.3214 / 0.551.4 / 0.0612 / 0.476.3 / 0.25
Φ1454.8 / 2.1637.5 / 1.4814 / 0.551.4 / 0.0614 / 0.556.3 / 0.25
Φ1663.5 / 2.5041.2 / 1.6219 / 0.751.4 / 0.0616 / 0.638.3 / 0.33
Φ1869 / 2.7244 / 1.7319 / 0.751.4 / 0.0618 / 0.718.3 / 0.33
Φ2071.8 / 2.8346.8 / 1.8419 / 0.751.4 / 0.0620 / 0.798.3 / 0.33
Φ2274.7 / 2.9450.5 / 1.9919 / 0.751.4 / 0.0622 / 0.878.3 / 0.33
Φ2576.6 / 3.0251.8 / 2.0419 / 0.751.4 / 0.0625 / 0.988.3 / 0.33
Φ2779.3 / 3.1255 / 2.1719 / 0.751.4 / 0.0627 / 1.068.3 / 0.33
Φ3284.8 / 3.3460.4 / 2.3819 / 0.751.4 / 0.0632 / 1.268.3 / 0.33
Φ3584.8 / 3.3460.4 / 2.3819 / 0.751.4 / 0.0635 / 1.388.3 / 0.33
Φ4091.8 / 3.6168 / 2.6819 / 0.751.8 / 0.0740 / 1.578.3 / 0.33
Φ4294.5 / 3.7270 / 2.7619 / 0.751.8 / 0.0742 / 1.658.3 / 0.33
Φ4595.4 / 3.7671.2 / 2.8019 / 0.751.8 / 0.0745 / 1.778.3 / 0.33
Φ50101.5 / 4.0077.3 / 3.0419 / 0.751.8 / 0.0750 / 1.978.3 / 0.33
Φ57110 / 4.3386.6 / 3.4119 / 0.751.8 / 0.0757 / 2.248.3 / 0.33
Φ60112 / 4.4188.4 / 3.4819 / 0.751.8 / 0.0760 / 2.368.3 / 0.33
Φ63116 / 4.5791.6 / 3.6119 / 0.751.8 / 0.0763 / 2.488.3 / 0.33
Φ76140.3 / 5.52116.4 / 4.5819 / 0.751.8 / 0.0776 / 3.008.3 / 0.33
Φ80132 / 5.20108.5 / 4.2719 / 0.751.8 / 0.0780 / 3.158.3 / 0.33
Φ90150.7 / 5.93126.4 / 4.9819 / 0.751.8 / 0.0790 / 3.548.3 / 0.33
Φ102153.9 / 6.06132 / 5.2019 / 0.751.8 / 0.07102 / 4.028.3 / 0.33
Φ108155 / 6.10131.2 / 5.1719 / 0.751.8 / 0.07108 / 4.258.3 / 0.33
Φ114183 / 7.20155 / 6.1019 / 0.751.8 / 0.07114 / 4.498.3 / 0.33
Φ120170 / 6.69145 / 5.7119 / 0.751.8 / 0.07120 / 4.728.3 / 0.33
Φ130190 / 7.48172 / 6.7719 / 0.751.8 / 0.07130 / 5.128.3 / 0.33
Φ140190 / 7.48165 / 6.5019 / 0.751.8 / 0.07140 / 5.518.3 / 0.33
Φ150192 / 7.56172 / 6.7719 / 0.751.8 / 0.07150 / 5.918.3 / 0.33
Φ160210 / 8.27175 / 6.8919 / 0.751.8 / 0.07160 / 6.308.3 / 0.33

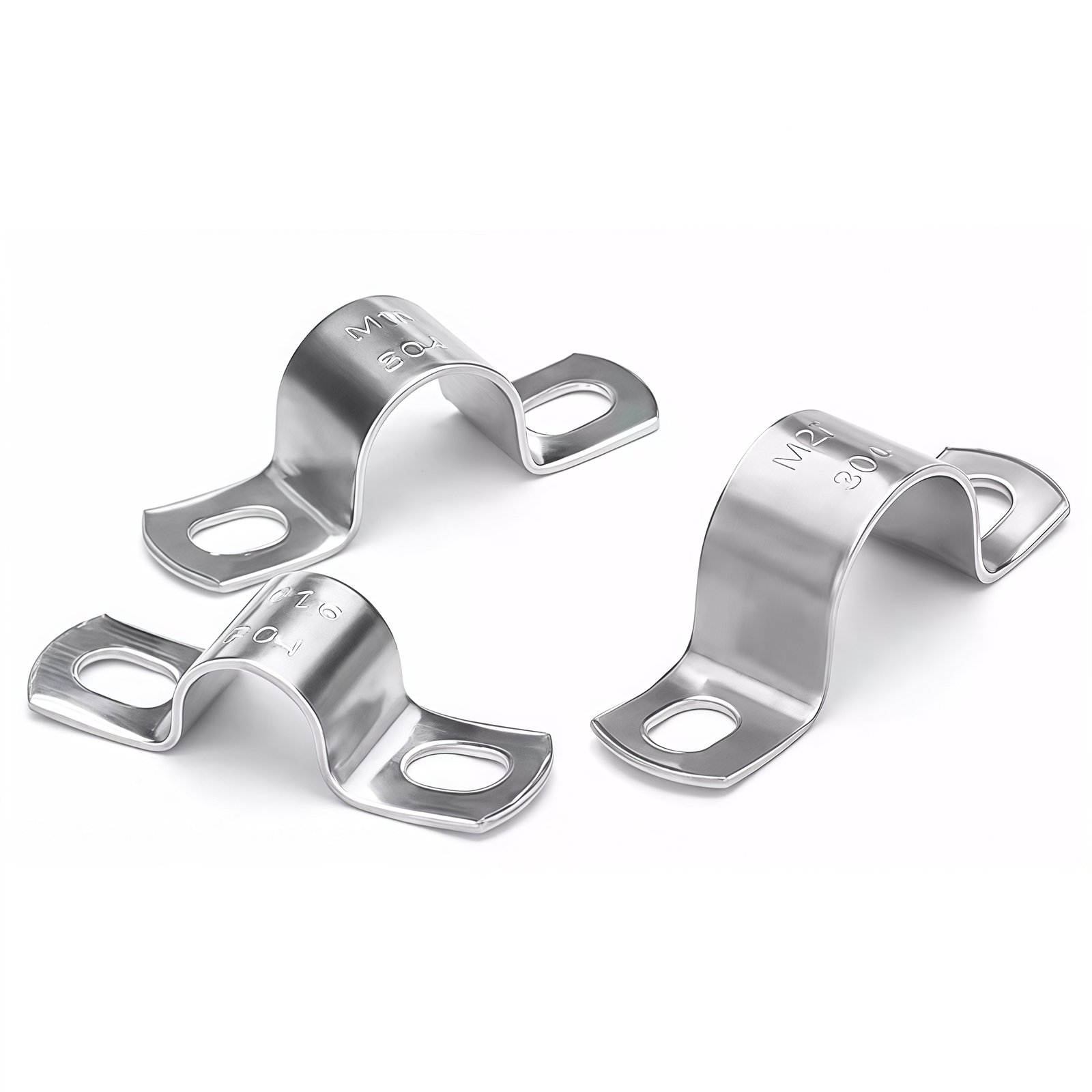

 Key Features of Our Stainless Steel Saddle Clamps

  • Premium Material Grades: Available in AISI 304 for general use and AISI 316 (Marine Grade) for superior resistance to chemicals and seawater corrosion.

  • Robust & Heavy-Duty: Engineered to provide high-strength support for tubing, conduits, and heavy-duty piping systems.

  • Precision Stamping: Manufactured using advanced stamping of metal parts technology, ensuring smooth edges and consistent hole alignment.

  • Expert Customization: As a specialist in non-standard metal parts, we can customize the thickness, width, and diameter of your pulley stainless and clamp components based on your STP/DWG drawings.

Technical Specifications

AttributeDetails
MaterialSS304, SS316, SS316L, 321
TypeTwo-Hole Saddle Clamp / U-Strap / Pipe Clip
Size Range5mm to 500mm (Standard & Custom)
Thickness0.5mm – 10mm (Customizable)
Surface FinishVibration Polished, Mirror Polished, or Pickled
StandardsDIN, ANSI, GB, or Non-Standard Drawings

Wide Range of Applications

Our stainless steel pipe clamps are essential for various critical sectors:

  1. Marine Engineering: 316 stainless steel saddle clamps are ideal for boat rigging and offshore platforms.

  2. Petrochemical Industry: Reliable support for pipes carrying corrosive fluids in harsh environments.

  3. Construction & Plumbing: Secure fastening for water pipes, gas lines, and electrical conduits in modern buildings.

  4. Architectural Projects: Used in high-end railing systems and wind dynamic wall installations where aesthetics and durability matter.

 Why Source Saddle Clamps from YouJia Metal?

  • Direct Factory Access: Buy directly from our Dainan stainless steel factory to eliminate middleman margins and reduce procurement costs.

  • Non-Standard Expert: We thrive on complexity. If standard clamps don’t fit your project, our engineering team will develop a custom non-standard part solution.

  • Quality Assurance: Every shipment is accompanied by a Material Test Report (MTR) to verify chemical composition and physical properties.

  • Global Logistics: Efficient lead times and secure export packaging for international bulk orders.

Frequently Asked Questions (FAQ)

Q: Can you manufacture saddle clamps with custom hole spacing?
A: Yes. We are an expert in customized processing. We can adjust the hole diameter and spacing to match your specific mounting requirements.

Q: What is the difference between 304 and 316 pipe straps?
A: 304 stainless steel is cost-effective for most indoor/outdoor uses. 316 stainless steel is mandatory for marine or chemical environments due to its high molybdenum content which prevents pitting.

Call to Action (CTA)

Looking for a Reliable Pipe Clamp Supplier?
Request a free quote for bulk orders or consult our engineers about your custom non-standard saddle clamp needs today.

WhatsApp: +86 15952693580

Contact Us
