| Size | Pitch (p)(inch) | Total Height (L)(inch) | Hole Diameter (a)(inch) | Screw Diameter (d) (inch) | Shank Diameter (D) (inch) | Clamp Height (h1) (inch) | Hex Side (s) (inch) | Applicable Wrench Size (inch) |
|---|---|---|---|---|---|---|---|---|
| M2 | 0.02 | 0.67 | 0.18 | 0.12 | 0.10 | 0.35 | 0.21 | 0.22 |
| M3 | 0.02 | 0.80 | 0.21 | 0.16 | 0.13 | 0.34 | 0.27 | 0.28 |
| M5 | 0.03 | 1.05 | 0.28 | 0.20 | 0.17 | 0.37 | 0.31 | 0.31 |
| M6 | 0.04 | 1.27 | 0.28 | 0.24 | 0.20 | 0.43 | 0.39 | 0.39 |
| M4 | 0.05 | 0.90 | 0.26 | 0.16 | 0.13 | 0.39 | 0.27 | 0.28 |
| M8 | 0.05 | 1.36 | 0.40 | 0.24 | 0.20 | 0.59 | 0.39 | 0.39 |
| M10 | 0.06 | 1.76 | 0.40 | 0.31 | 0.28 | 0.59 | 0.49 | 0.49 |
| M12 | 0.07 | 2.02 | 0.58 | 0.39 | 0.33 | 0.71 | 0.62 | 0.63 |
| M14 | 0.08 | 2.22 | 0.57 | 0.39 | 0.34 | 0.84 | 0.62 | 0.63 |
| M16 | 0.08 | 2.54 | 0.73 | 0.47 | 0.41 | 0.94 | 0.70 | 0.71 |
| M18 | 0.10 | 2.90 | 0.79 | 0.47 | 0.42 | 1.16 | 0.70 | 0.71 |
| M20 | 0.10 | 2.91 | 0.81 | 0.47 | 0.42 | 1.17 | 0.70 | 0.71 |
| M22 | 0.10 | 3.01 | 0.99 | 0.47 | 0.42 | 1.28 | 0.70 | 0.71 |
| M24 | 0.12 | 3.15 | 1.07 | 0.47 | 0.42 | 1.30 | 0.70 | 0.71 |
| M26 | 0.12 | 3.41 | 1.09 | 0.47 | 0.42 | 1.40 | 0.70 | 0.71 |
| M30 | 0.14 | 3.95 | 1.31 | 0.63 | 0.55 | 1.40 | 0.94 | 0.94 |
| M32 | 0.14 | 3.95 | 1.32 | 0.63 | 0.57 | 1.40 | 0.94 | 0.94 |

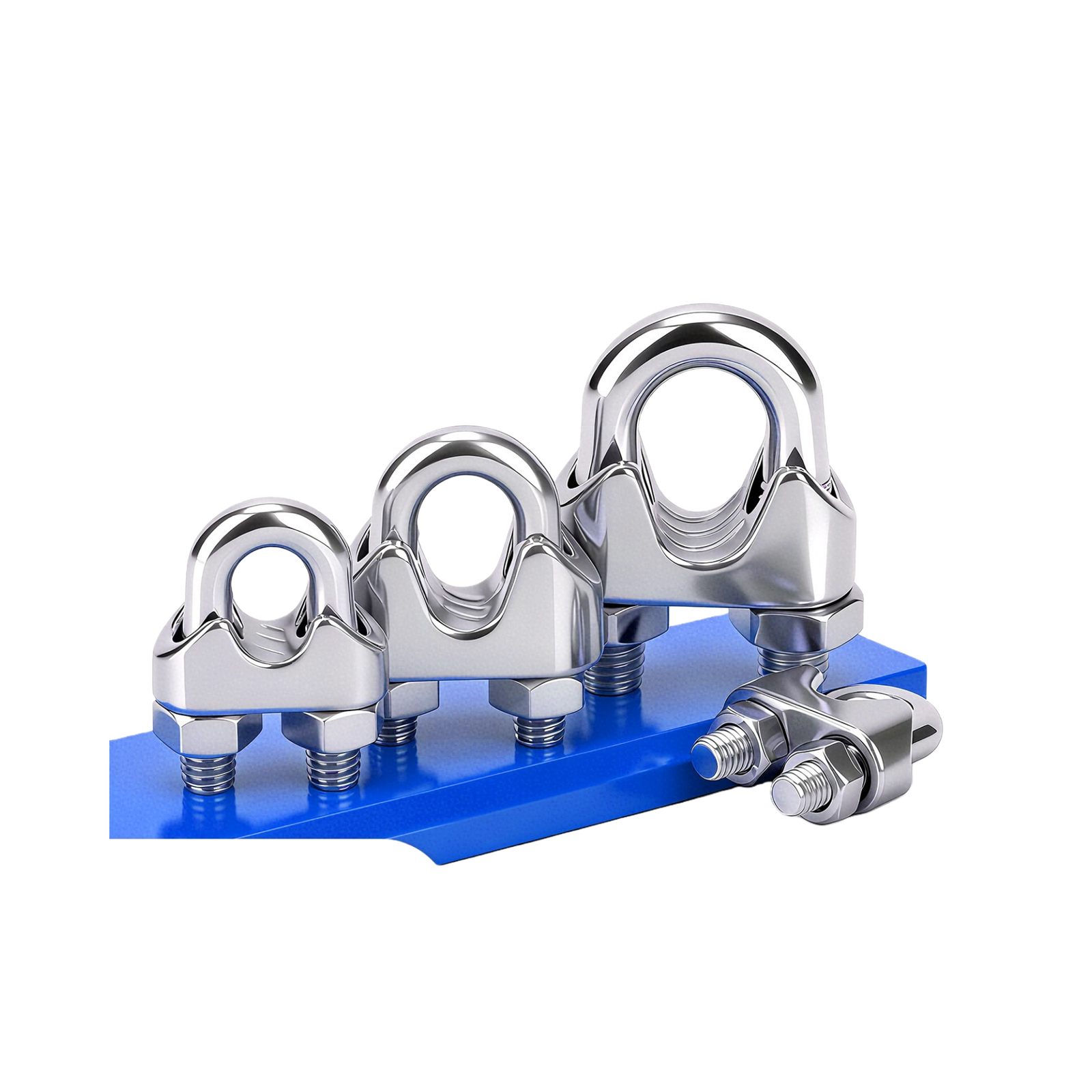

High-Strength 304 Stainless Steel Wire Rope Clip & Wire Rope Clip Clamp
Welcome to YouJia Metal, your premier source for professional wire rope clip stainless steel solutions. As an expert in customized processing of stainless steel non-standard parts, we leverage 10 years of manufacturing excellence in Dainan to deliver the most reliable wire rope clip clamp on the market.
Our wire rope clip – industrial series is designed for extreme durability, ensuring a secure grip for every steel cable system. Whether you are searching for a standard wire rope clip 6mm or a heavy-duty wire rope clip 8mm, our factory-direct supply guarantees 100% material integrity and competitive pricing.
Precision Engineering: Choosing the Right Wire Rope Clip Size
In industrial rigging, the correct wire rope clip size is the foundation of safety. At YouJia Metal, we provide a wide range of options to match your cable diameter. Our precision-manufactured wire rope clip 6mm and wire rope clip 8mm are the top choices for coastal and industrial applications due to their high-mirror polished finish and rust-proof properties.

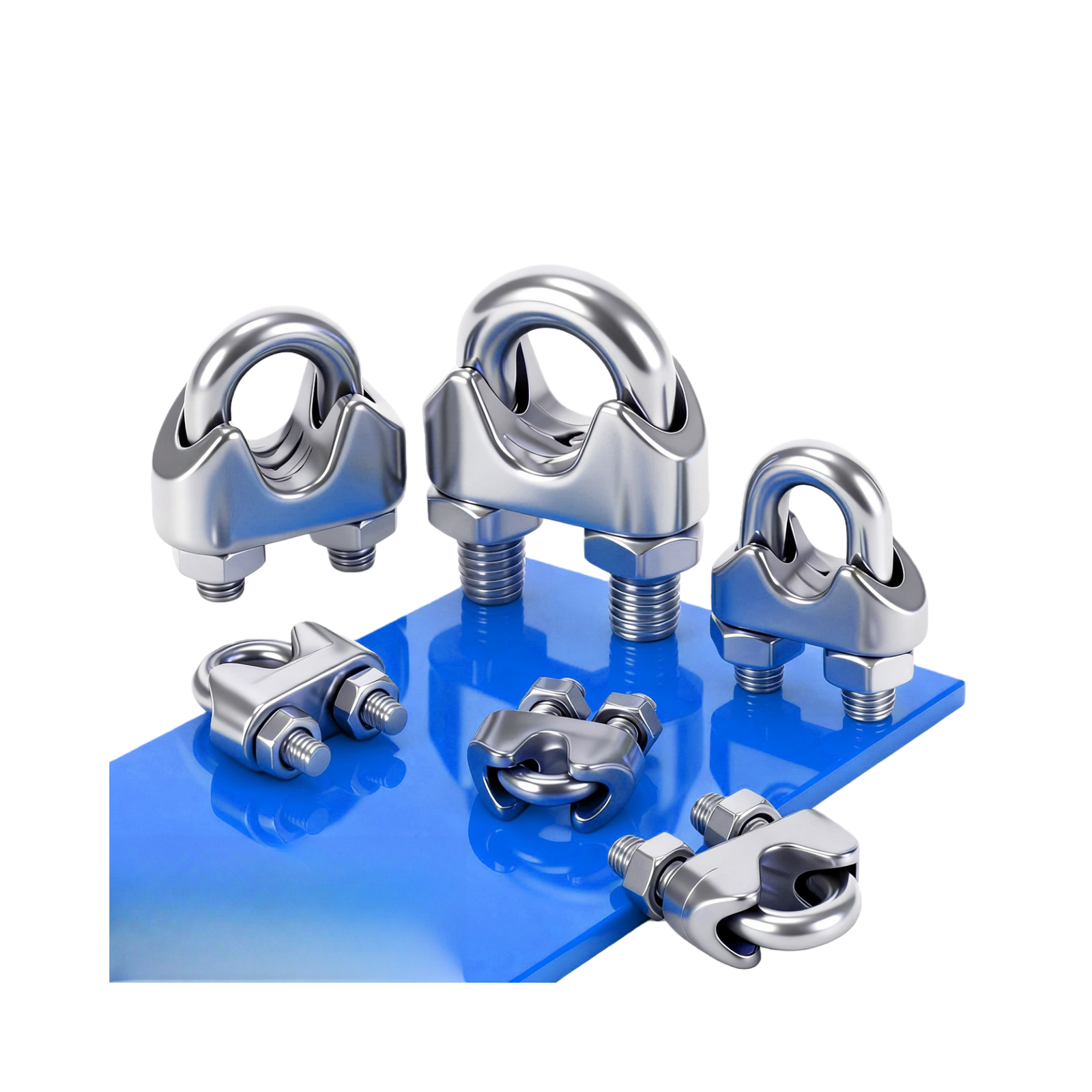

Beyond the standard wire rope clip stainless steel catalog, we excel in customized processing. If your project requires a unique wire rope clip – design or non-standard dimensions that are not in a typical wire rope clip size chart, our engineering team can manufacture it based on your STP or DWG drawings.
Technical Specifications & Wire Rope Clip Size Chart
| Product Detail | Specification |
| Product Name | Wire rope clip stainless steel / Wire rope clip clamp |
| Material Grade | Authentic AISI 304 / 316 (Marine Grade) |
| Available Sizes | Wire rope clip 6mm, Wire rope clip 8mm, up to 32mm |
| Size Standards | Follows the global wire rope clip size chart (DIN, ANSI) |
| Specialty | Expert in non-standard parts and stamping of metal parts |
| Bulk Supply | 1000 Pcs/Pack for optimized shipping |

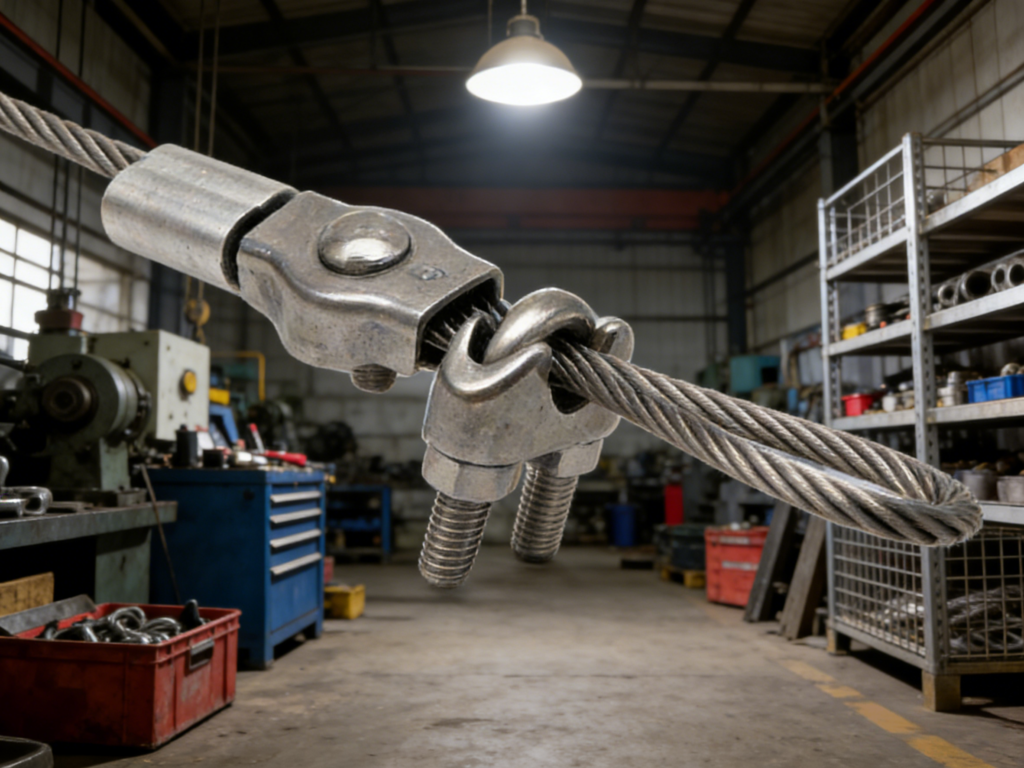

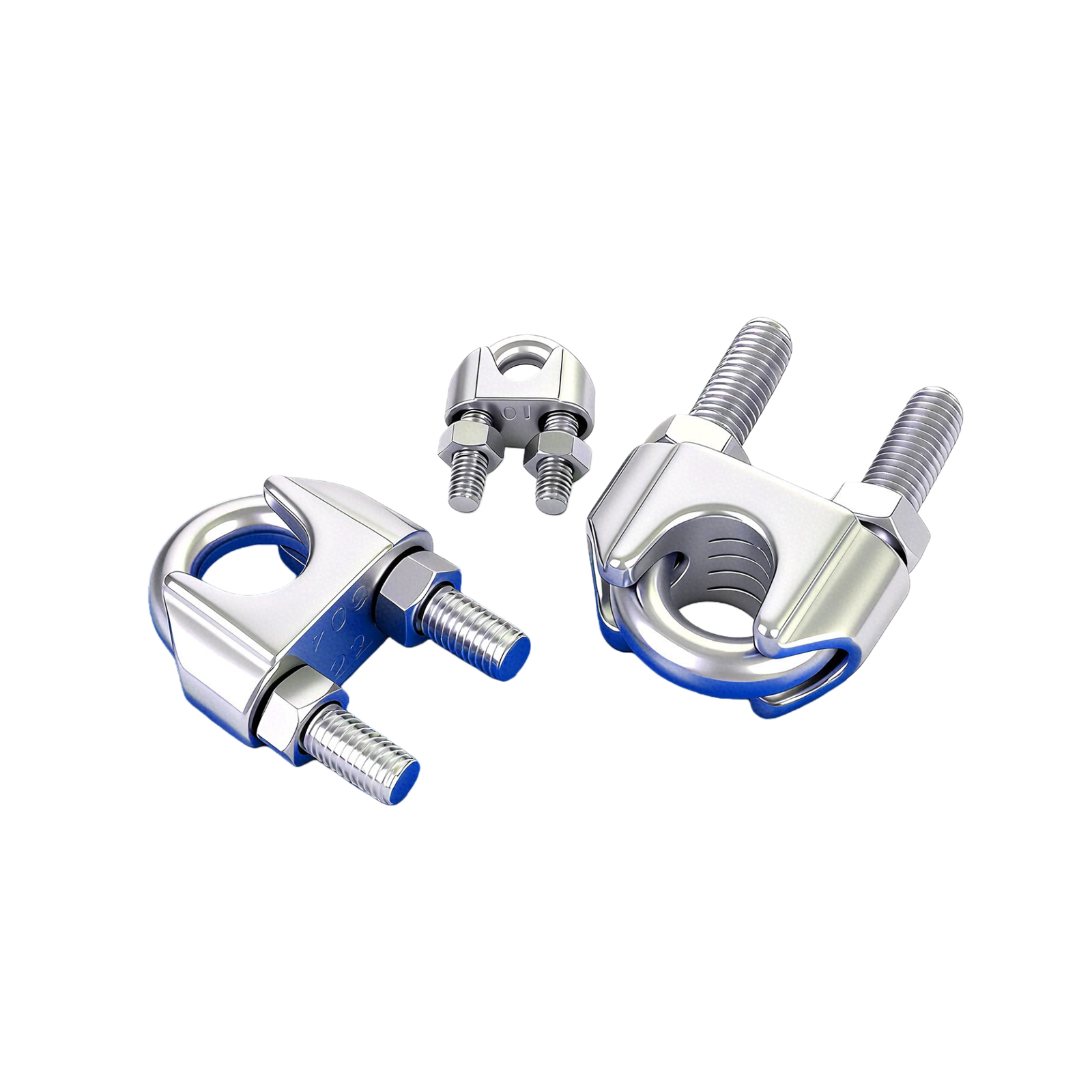

Professional Wire Rope Clip Installation & Safety
Proper wire rope clip installat (installation) is critical to the load-bearing capacity of your assembly. When performing a wire rope clip installation, remember to always “never saddle a dead horse” to ensure the U-bolt is positioned correctly.
Our wire rope clips home and industrial users alike rely on these components for diverse applications:

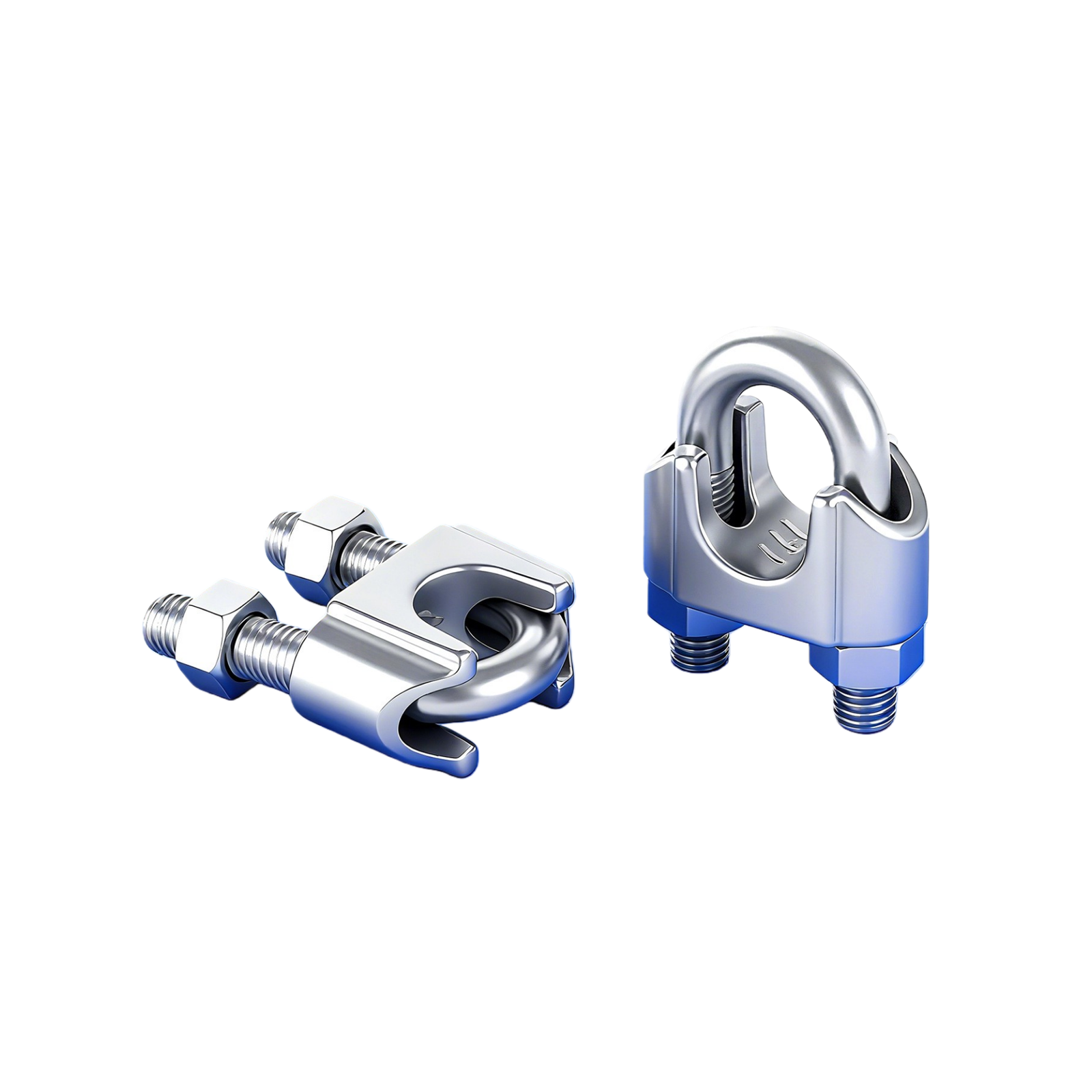

Rigging Systems: Integrates perfectly with our [stainless steel pulleys] and [link chains].
Securing: Often used in combination with [stainless steel eyebolt nut] and [eye bolt with nut] sets.
Architecture: Vital for tensioning cables in [wind dynamic walls] and secure fencing, alongside our [saddle clamps] and [expansion bolts].
Why YouJia Metal is the Expert in Wire Rope Clip Clamp Supply?
Dainan Factory Source: By sourcing wire rope clip stainless steel directly from our hub, you eliminate middleman costs and get wholesale pricing.
Custom Fabrication: We don’t just sell standard wire rope clip size items; we specialize in custom non-standard parts for complex machinery.
Marine Grade Quality: Our SS316 wire rope clip clamp offers superior resistance to pitting and saltwater corrosion.
Integrated Hardware: We are your one-stop-shop for [stainless steel bolts and nuts] and all industrial rigging fasteners.
Frequently Asked Questions (FAQ)
Q: What is the most common wire rope clip size for outdoor fencing?
A: Most wire rope clips home projects use the wire rope clip 6mm or wire rope clip 8mm, depending on the cable thickness. Always refer to our wire rope clip size chart for exact measurements.
Q: Can you provide customized wire rope clip clamp designs?
A: Yes. We are an expert in customized processing. We can adjust the thickness and material of the wire rope clip stainless steel to meet your specific load requirements.
Call to Action (CTA)
Looking for a Bulk Wire Rope Clip Stainless Steel Supplier?
Request a free quote for your wire rope clip 6mm or wire rope clip 8mm orders today. Our team is ready to help you with standard or custom non-standard part solutions!
