High-Performance Stainless Steel Wire Rope Clips: Single & Duplex Clamps
At YouJia Metal, we manufacture a comprehensive range of stainless steel wire rope clips, including single bolt clips and double bolt (duplex) clamps. Designed for maximum gripping strength and safety, our clips are the ideal choice for securing wire rope and steel cable in demanding industrial environments.
As experts in the custom processing of non-standard stainless steel parts, we combine the high-quality raw material supply from Danan with our 10 years of precision manufacturing experience to provide hardware that surpasses international standards.

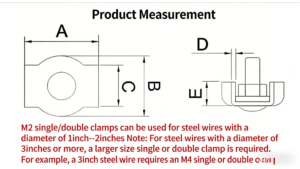

| Specification | A (in) | B (in) | C (in) | D (in) | E (in) | Bolt | Weight per 1000 pcs (kg) |
|---|---|---|---|---|---|---|---|
| M2 | 0.59 | 0.47 | 0.28 | 0.04 | 0.20 | M4*13 | 4 |
| M3 | 0.67 | 0.59 | 0.35 | 0.04 | 0.24 | M4*13 | 6 |
| M4 | 0.79 | 0.75 | 0.47 | 0.06 | 0.24 | M5*17 | 10 |
| M5 | 0.98 | 0.79 | 0.55 | 0.06 | 0.31 | M5*17 | 13 |
| M6 | 1.18 | 0.98 | 0.67 | 0.08 | 0.37 | M6*22 | 27 |
| M8 | 1.50 | 1.22 | 0.91 | 0.08 | 0.39 | M8*29 | 46 |
| M10 | 1.89 | 1.50 | 1.06 | 0.10 | 0.55 | M10*31 | 90 |
Single vs. Double (Duplex) Wire Rope Clips
We provide two primary types of clamps to suit different loading and aesthetic requirements:
Stainless Steel Single Wire Rope Clip: A compact, reliable solution for light-duty applications and small-diameter cables. Easy to install and adjust.

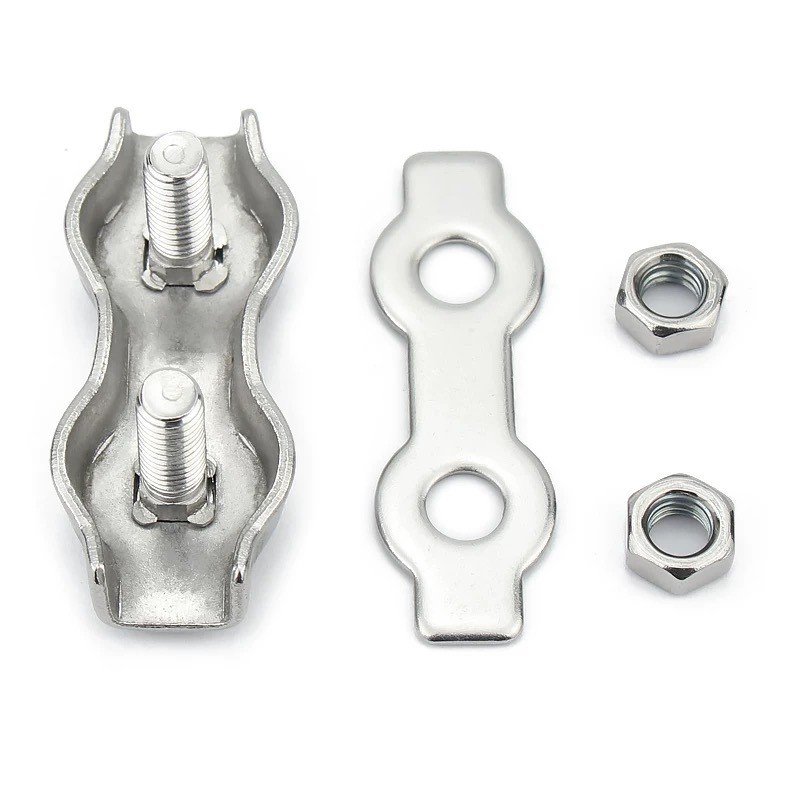

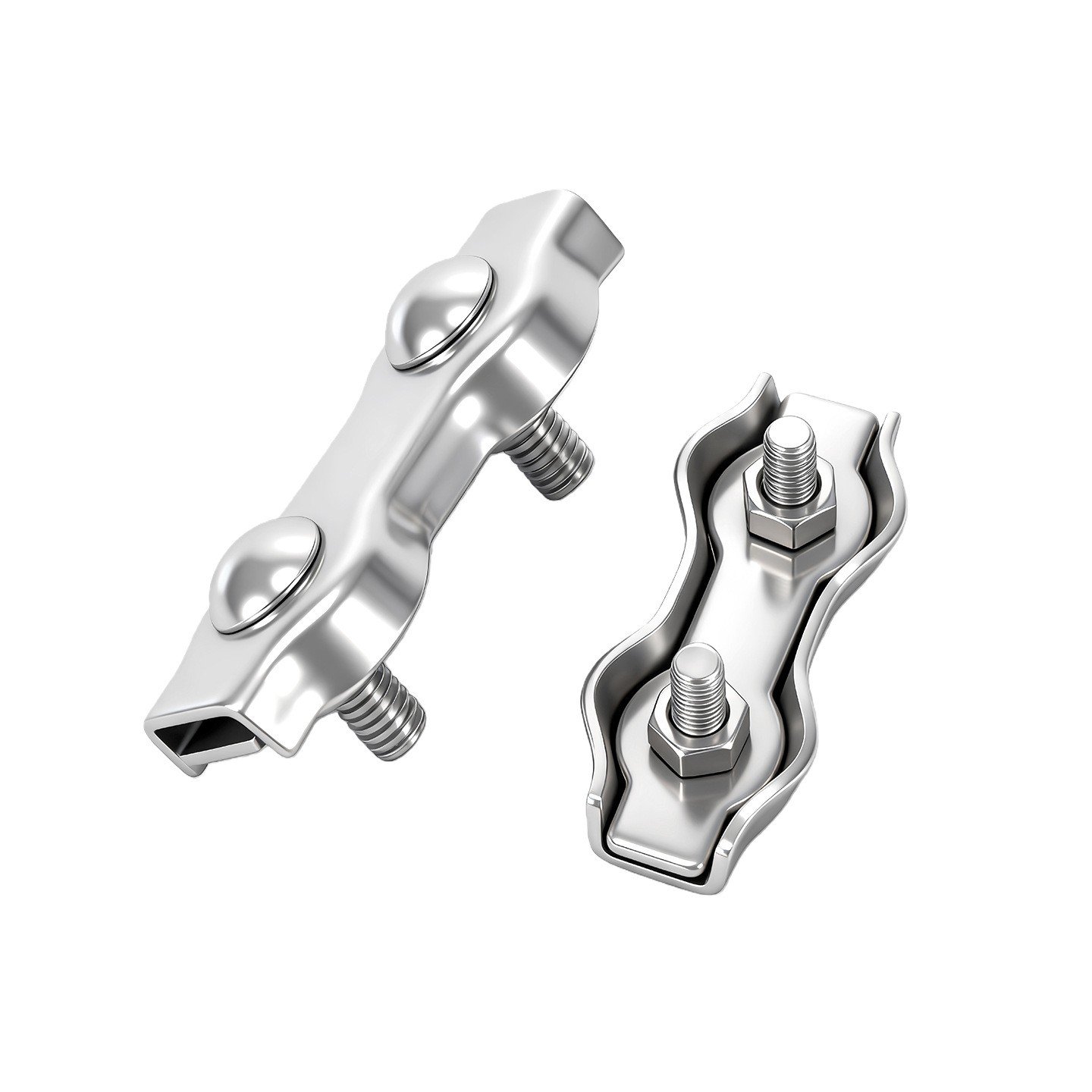

Stainless Steel Double (Duplex) Wire Rope Clip: Features a two-bolt design for superior gripping power and increased safety. Often used in permanent rigging and high-load systems.
Key Features & Advantages
Marine Grade Durability: Available in AISI 304 and AISI 316 stainless steel for extreme resistance to rust and salt-spray corrosion.
Precision Threading: CNC-machined bolts and nuts ensure a smooth, secure lock without damaging the steel cable.
High Load Capacity: Heavy-duty construction designed to work seamlessly with our stainless steel link chains and pulley blocks.
Custom Design Support: Need a non-standard size or a specialized shape? We excel in customized processing and can manufacture clips based on your STP, DWG, or PDF drawings.
Technical Specifications
| Attribute | Details |
| Material Grade | AISI 304, 316, 316L Stainless Steel |
| Clip Type | Single Clip / Double (Duplex) Clip / U-Bolt Type |
| Size Range | 2mm to 20mm (Standard) / Custom Non-Standard |
| Surface Finish | High-Mirror Polished / Satin / Electropolished |
| Standard Compliance | DIN, ANSI, JIS, or Custom Specifications |
| Compatible With | Wire Rope, Steel Cable, Nylon Coated Cable |
Essential for Complete Rigging Systems
Our stainless steel wire rope clamps are designed to be part of an integrated solution. They are widely used in combination with:
Lifting & Hoisting: Perfectly compatible with our 304/316 stainless steel pulleys for smooth mechanical transmission.
Architectural Design: Securing cables for balustrades, fencing, and our signature wind dynamic walls.
Marine Rigging: Secure fastening for sailboat rigging and yacht dock lines where corrosion resistance is critical.
Construction: Heavy-duty support alongside our expansion bolts and saddle clamps.

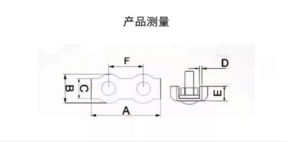

Specification A (in) B (in) C (in) D (in) E (in) F (in) Bolt Weight per 1000 pcs (kg) M2 1.18 0.47 0.28 0.04 0.20 0.59 M4*13 8 M3 1.34 0.59 0.35 0.04 0.24 0.63 M4*13 11 M4 1.57 0.75 0.47 0.06 0.24 0.79 M5*17 21 M5 1.97 0.79 0.55 0.06 0.31 0.98 M5*17 26 M6 2.36 0.98 0.67 0.08 0.37 1.18 M6*22 52 M8 2.95 1.22 0.91 0.08 0.39 1.50 M8*29 91 M10 3.78 1.50 1.06 0.10 0.55 1.89 M10*31 780
Why Source from YouJia Metal?
Dainan Factory Direct: Located in China’s stainless steel hub, we offer highly competitive wholesale pricing and material traceability.
Expert Fabrication: We don’t just sell standard hardware; we provide custom stainless steel parts solutions for complex engineering projects.
Quality Certified: Every batch comes with a Material Test Report (MTR) ensuring the nickel and chromium content meets your specifications.
H2: Frequently Asked Questions (FAQ)
Q: Which is better for marine use, 304 or 316 wire rope clips?
A: For saltwater environments, we always recommend 316 stainless steel duplex clips due to their superior resistance to pitting and chloride corrosion.
Q: Do you support small batch custom orders?
A: Yes. As a customized processing specialist, we support rapid prototyping and small batch production for non-standard rigging hardware.
